Prepacked Magnesium Anode with D S R Shape Alloy Metal and Backfill Powder for Cathodic Protection
Λεπτομέρειες:
| Τόπος καταγωγής: | Shanxi, Κίνα |
| Μάρκα: | high broad |
| Αριθμό μοντέλου: | HP AZ63C |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 |
|---|
|
Λεπτομερής ενημέρωση |
|||
| Χημική σύνθεση: | Μαγνήσιο | Υλικό: | Μέταλλο μαγνήσιου |
|---|---|---|---|
| Σχήμα: | Σχήμα DSR | Υλικό πυρήνα: | ατσάλι |
| Βάρος: | 32 lb | Σύνθεση εκσκαφής: | 75% γύψος, 20% μπεντονίτης, 5% θειικό νάτριο |
| Ανοιχτή τάση: | 1.70-1.75 V | Τάση κλεισίματος: | 1.57-1.62 V |
| Πραγματική χωρητικότητα: | ≥ 1,100 AH/g | Τρέχουσα απόδοση: | ≥ 50% |
| Περιεκτικότητα σε αργιλίου: | < 0,01% | Περιεκτικότητα σε μαγγάνιο: | 0,5-1,30% |
| Περιεχόμενο σιδήρου: | ≤ 0,03% | Περιεχόμενο νικελίου: | ≤ 0,001% |
| Περιεκτικότητα σε χαλκό: | ≤ 0,02% | ||
| Επισημαίνω: | D S R Shape Magnesium Anode,Backfill Powder Sacrificial Anode,Alloy Metal Prepacked Magnesium Anode |
||
Περιγραφή προϊόντων
Prepacked Magnesium Anode for Anti Corrosion and Cathodic Protection
Product Specifications

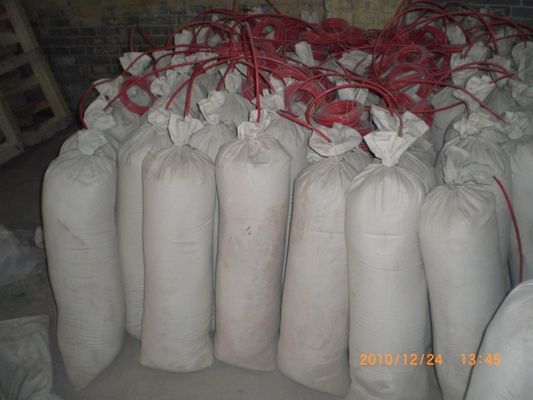

Commodity: Prepacked Magnesium Anode with backfill powder
Weight: 32 lb. High-Potential Magnesium Anode - Bare

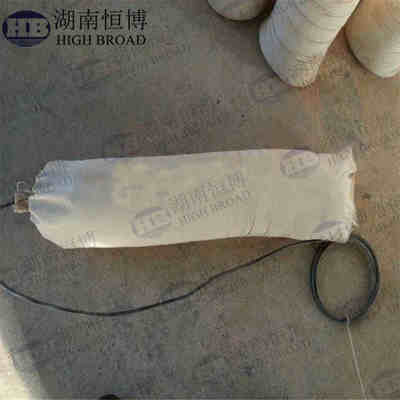

Type: Pre-packaged type in a cloth bag
Production Standard: ASTM G-97
Backfill Mixture Composition
| Component | Percentage |
|---|---|
| Ground Hydrant Gypsum | 75% |
| Powdered Bentonite | 20% |
| Hydratate Sodium Sulphate | 5% |

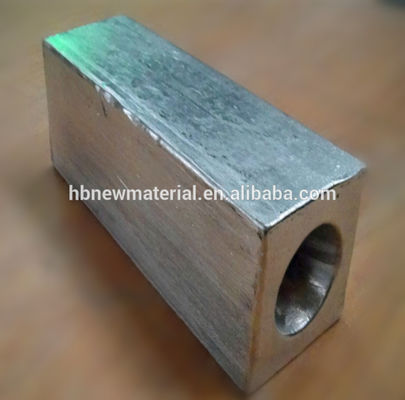

Chemical Compositions of Cast Magnesium Anode (%)
| Element | High potential | AZ63B | AZ63C | AZ63D |
|---|---|---|---|---|
| Al | < 0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.05 | --- | -- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
| Mg | Balance | Balance | Balance | Balance |
Electrochemical Properties of Cast Magnesium Anodes
| Item | Open-circuit Voltage (-V) | Close-circuit Voltage (-V) | Actual capacitance (A.h/g) | Current efficiency (%) |
|---|---|---|---|---|
| High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
| Low Potential (AZ63) | 1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)
Environmental Features
Made of recyclable materials or easily decomposable materials with harmful element content below safety standards, ensuring no pollution to the surrounding environment.
Available cable types: PVC/PVC, XLPE/PVC, HMWPE etc. with any required size.
Backfill Element Safety Standards
| Element | Maximum Content |
|---|---|
| Cadmium (Cd) | ≤ 1ppm |
| Arsenicum (As) | ≤ 1ppm |
| Mercury (Hg) | ≤ 1ppm |
| Phosphorus (Pb) | ≤ 10ppm |
Performance Advantages
The magnesium anode is cast from high-purity magnesium and installed in a specialized backfill mixture. This configuration produces an open circuit potential of 1.65-1.70 volts, offering 20-30% greater protection than conventional magnesium anodes. The higher driving voltage enables superior protection with fewer anodes.
Packaging & Shipping

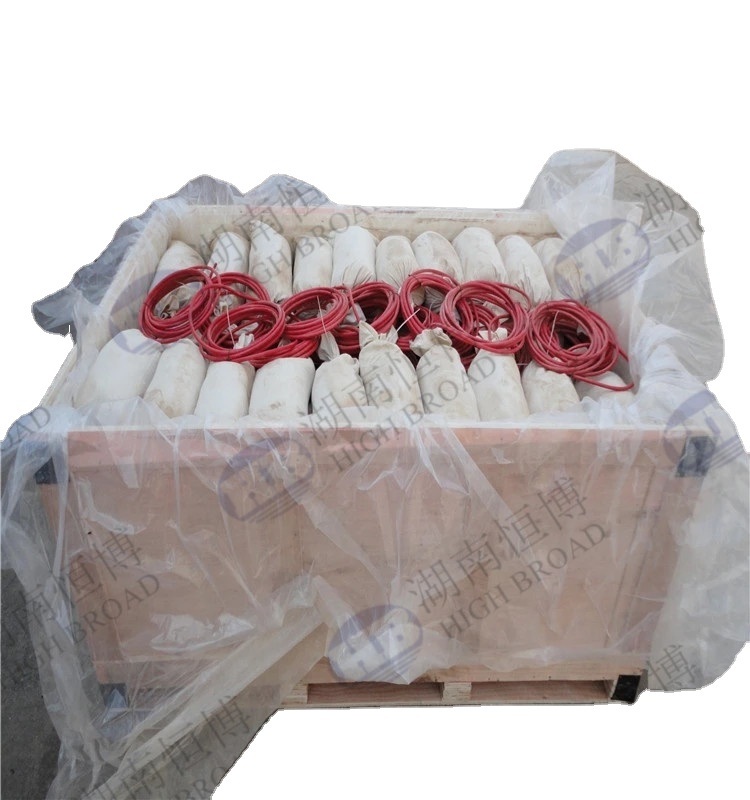

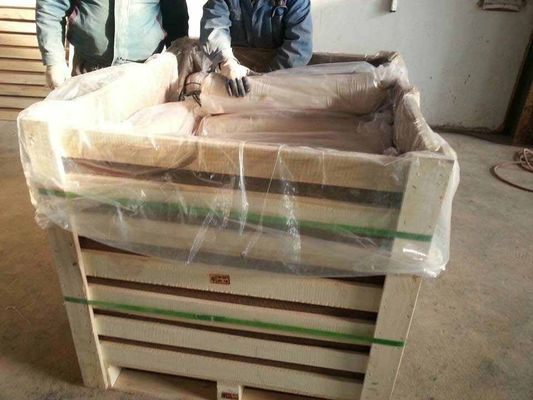

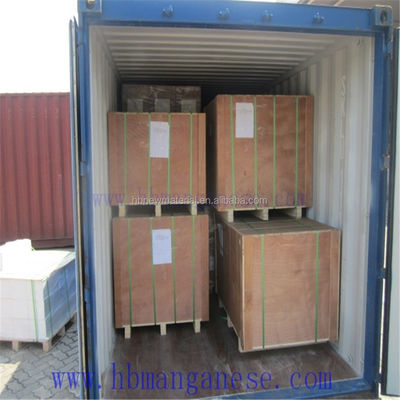

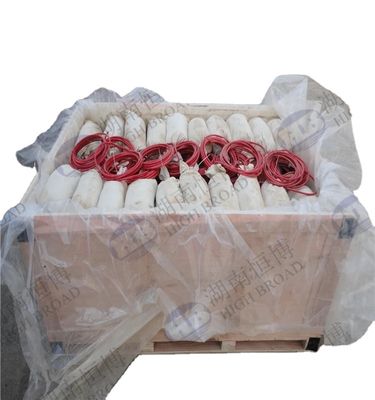

Packaged on pallets with steel bundles for secure transportation.
Company Information
We represent a leading anode manufacturing plant in China, specializing in magnesium and aluminum anodes. With annual exports of approximately 3000 metric tons primarily to Canada and the USA, our products undergo rigorous third-party testing in the USA to ensure consistent quality. Our direct access to raw material resources enables us to offer competitive pricing while maintaining high standards.
Facility Images
Frequently Asked Questions
What do Magnesium sacrificial anodes do?
Magnesium sacrificial anodes prevent metal corrosion in salt/fresh water or soil through cathodic protection systems. They are commonly used to protect underground pipelines (gas, oil, water), storage tanks, ships, port facilities, power plants, and irrigation systems. When connected to a structure, the anode corrodes preferentially, protecting the structure from corrosion until replacement is needed.
Why choose us?
With over 20 years in the cathodic protection anode market, we strictly adhere to ASTM G97 standards. Our continuous production of high-quality, stable products helps reduce your long-term costs while ensuring reliable performance.
Company Values
Our belief: Innovation forever
Our spirit: Sincerity, unity, dedication, hard work, creativity
Our mission: Provide most advanced products & most professional technical solutions
