Pull Through Rated MMO Flexible Linear Anode for Horizontal Directional Drilling Pipeline Crossing CP
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | High Broad or OEM |
| Πιστοποίηση: | ISO 9001, Pull Test Certified |
| Αριθμό μοντέλου: | MMO-HDD-006 |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος άνοδου: | HDD Pull-Through Rated MMO Linear | Αξιολόγηση εφελκυσμού: | > 5kN Συνεχές τράβηγμα |
|---|---|---|---|
| Ελάχιστη ακτίνα κάμπωσης: | 50 μέτρα | Σακάκι: | Ενισχυμένο σε πολλαπλά στρώματα, ανθεκτικό στην τριβή |
| Σύνδεση: | Υπερ-καλουπωμένες ραφές ανακούφισης στελέχους | Εγκατάσταση: | Ταυτόχρονη έλξη με αγωγό μεταφοράς |
| Επισημαίνω: | HDD Τραβήξτε μέσα από MMO άνοδο,Διορισμός του σωλήνα γεωτρήσεις,Ελαστικός άνοδος διέλευσης ποταμού |
||
Περιγραφή προϊόντων

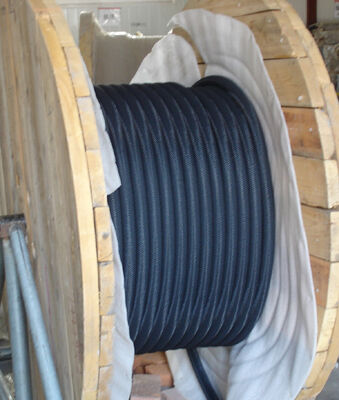

HDD-Rated MMO Flexible Linear Anode
Standard linear anodes cannot survive horizontal directional drilling installation. Our HDD-rated anode is engineered from the ground up for the extreme mechanical demands of pull-through operations — river crossings, highway underpasses, and urban infrastructure projects.
HDD-Specific Engineering
Reinforced Jacket: Multi-layer construction with internal friction-reducing layer to minimize pull force and external abrasion-resistant layer to withstand bore wall contact. Tensile rating exceeds 5kN continuous pull force.
Flexible Core Design: Stranded copper conductor with enhanced flexibility accommodates bore path curvature radii as tight as 50 meters without conductor damage or insulation cracking.
Connection Reinforcement: Splice connections are over-molded with additional mechanical strain relief to survive the tension spikes that occur during pipe pullback operations.
Installation Process
Anode is attached to the pipeline and pulled through the bore hole simultaneously with the carrier pipe. Once in position, the anode provides continuous CP along the entire HDD section — protection where traditional groundbed anodes cannot reach.
Applications
- River and waterway pipeline crossings
- Highway and railway underpass CP
- Urban infrastructure HDD installations
- Environmentally sensitive area crossings
