Prepackaged Magnesium Anode with Backfill for Dry Rocky Sandy Soil Cathodic Protection
Λεπτομέρειες:
| Τόπος καταγωγής: | Χουνάν, Κίνα |
| Μάρκα: | High Broad |
| Πιστοποίηση: | ASTM G-97, ISO 9001, DNV |
| Αριθμό μοντέλου: | HB-PP-HRS |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 10 κιλά |
|---|---|
| Τιμή: | USD 4-6 / Kilogram |

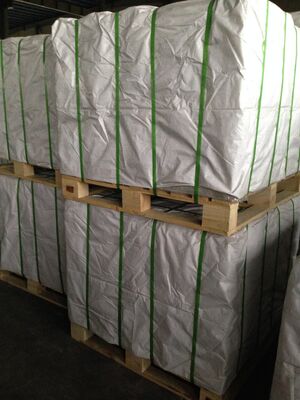

| Συσκευασία λεπτομέρειες: | Βαμβακερή σακούλα ή χαρτοκιβώτιο με επίχωση, σφραγισμένη με εποξειδική ρητίνη, σε παλέτα με ατσάλινε |
| Χρόνος παράδοσης: | 14 ημέρες για 1 FCL |
| Όροι πληρωμής: | T/T, L/C, Western Union, PayPal |
| Δυνατότητα προσφοράς: | 300 μετρικοί τόνοι το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Υλικό: | Κράμα μαγνησίου υψηλού δυναμικού (MGM1C) | Τύπος άνοδου: | Προσυσκευασμένη Θυσιαστική χυτή άνοδο μαγνησίου |
|---|---|---|---|
| Σύνθεση εκσκαφής: | Γύψος 75%, μπεντονίτης 20%, θειικό νάτριο 5% | Τάση ανοικτού κυκλώματος: | -1,70 έως -1,75 V (έναντι Cu/CuSO4) |
| Τύπος καλωδίου: | PVC/PVC, XLPE/PVC, HMWPE | Μέγεθος καλωδίου: | 6mm², 10mm², 16mm² (#12 AWG) |
| καλωδιακή σύνδεση: | Εποξειδική ρητίνη σφραγισμένη, αντίσταση < 0,001 Ohm | Διαθέσιμα Βάρη: | 4 λίβρες, 9 λίβρες, 17 λίβρες, 32 λίβρες, 48 λίβρες |
| Υλικό τσαντών: | Ανακυκλώσιμη βαμβακερή τσάντα, περιβαλλοντικά ασφαλής | Περιοχή αντίστασης του εδάφους: | Έως 10.000 ohm·cm |
| Επισημαίνω: | Prepackaged Magnesium Backfill Anode,Dry Rocky Soil Protection,Sandy Soil Cathodic Protection |
||
Περιγραφή προϊόντων
Prepackaged Magnesium Sacrificial Anode Backfill for Dry Rocky Sandy Soil
This prepackaged magnesium sacrificial anode features a carefully formulated backfill mixture designed to overcome the challenges of high resistivity dry rocky and sandy soil environments. The backfill material creates a localized low-resistivity zone around the anode, ensuring consistent current output even when the surrounding soil lacks sufficient moisture and electrolyte conductivity.
Backfill Technology for Challenging Soil Conditions
- Optimized Backfill Formula: 75% Gypsum + 20% Bentonite + 5% Sodium Sulphate creates a moisture-retaining and ionically conductive environment that sustains anode activity in dry soil
- Rapid Wetting Properties: The backfill mixture absorbs and retains moisture, creating a protective conductive envelope that prevents anode passivation in sandy and rocky terrains
- Environmental Safety: Backfill contains harmful elements below international safety standards: Cadmium ≤1ppm, Arsenic ≤1ppm, Mercury ≤1ppm, Lead ≤10ppm
- Self-Conditioning: As the anode discharges, the backfill maintains a stable chemical environment that prevents the formation of resistive films on the anode surface
Technical Specifications
| Anode Material | High Potential Magnesium Alloy (MGM1C) |
| Open Circuit Voltage | -1.70 to -1.75V (vs Cu/CuSO4) |
| Backfill Composition | Gypsum 75%, Bentonite 20%, Sodium Sulphate 5% |

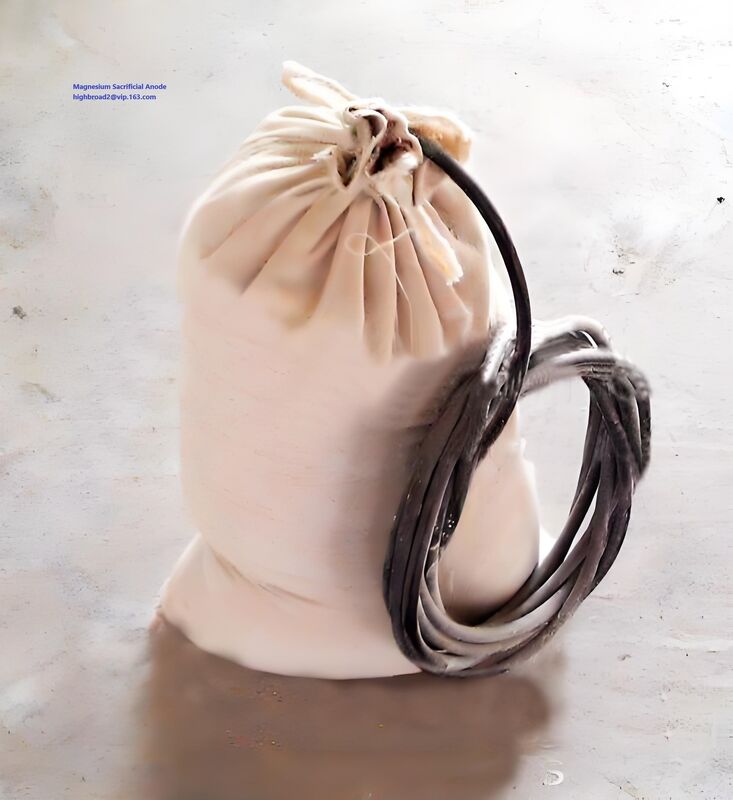

| Packaging | Cotton bag or cardboard carton with backfill powder |
| Cable Specification | #12 AWG Copper Lead Wire, 10 feet standard length |
| Cable Insulation | PVC/PVC, XLPE/PVC, or HMWPE |
| Connection Sealing | Epoxy resin sealed, resistance < 0.001 Ohm |
| Available Sizes | 4lbs, 9lbs, 17lbs, 32lbs, 48lbs and custom |
Performance in Different Soil Conditions
| Soil Type | Typical Resistivity | Backfill Benefit | Protection Level |
|---|---|---|---|
| Dry Sandy Soil | 5,000-10,000 ohm·cm | Moisture retention + ionic conductivity | Excellent |
| Rocky Terrain | 3,000-15,000 ohm·cm | Contact surface enhancement | Excellent |
| Gravel / Stony Soil | 2,000-8,000 ohm·cm | Uniform current distribution | Very Good |
| Moist Clay Soil | 500-2,000 ohm·cm | Enhanced current output | Good (bare anode sufficient) |
| Wet Organic Soil | 200-1,000 ohm·cm | Extended service life | Good |
Key Advantages Over Bare Anodes in Difficult Soil
- Eliminates Dry Contact Issues: The backfill fills voids between the anode and rocky/sandy soil, maximizing effective contact area
- Reduces Ground Resistance: Backfill lowers the anode-to-earth resistance by up to 40% compared to bare anodes in sandy soil
- Uniform Current Distribution: Ensures even consumption of the anode material, maximizing service life and cost-effectiveness
- Simplified Installation: Ready-to-install with pre-attached cable, eliminating the need for on-site backfill mixing
Applications
- Underground pipelines in desert and semi-arid regions
- Storage tank farms in sandy soil environments
- Well casings and sub-surface structures in rocky terrain
- Pipeline networks in mountainous and gravel-rich areas
- Electrical grounding grids requiring corrosion protection in dry soil
- Gas distribution networks in high resistivity soil conditions
Quality Assurance
All prepackaged anodes undergo rigorous quality inspection including cable connection resistance testing, backfill composition verification, and electrochemical performance evaluation per ASTM G-97. Each unit is traceable with batch numbers. With 5,000 metric tons annual production capacity and over 20 years of manufacturing experience, we consistently deliver reliable cathodic protection solutions to projects worldwide.
